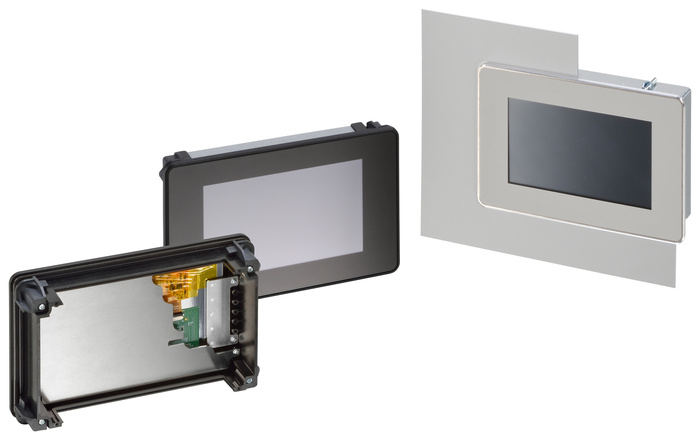

Individual enclosures, optimised for the installation of capacitive and resistive touch screens

  • BoTouch Plastic (BTK) designed for use with capacitive touch screens (5”; 7” and 10.4”)
  • BoTouch Aluminium (BTA) designed for use with resistive touch screens (5.7”; 7”; 8.4”; 10.4" and 12.1”)
  • project-specific variants on request
  • enclosure front / front membrane: project-specific printing
  • rear hood / enclosure frame fitted with clamps for panel installation
  • project-specific display retaining plate made of aluminium (the following are required for preparation work: sample, CAD data or a datasheet for the touch/display combination.)
  • starter kit available, consisting of enclosure incl. mounted display (5", 5.7", 7")

Colour BTK: black, similar to RAL 9005; BTA: customer-specific
Protection class Up to IP 65/DIN EN 60529 possible for the installation area
Enclosure material Rear hood: galvanised sheet steel BTK enclosure frame: PC UL 94 V0 BTA front frame: aluminium (anodised or powder-coated)
