CITROEN SWITCHGEARS PVT. LTD is one of the LEADING AUTHORIZED DEALER & STOCKIST for HPL – ELECTRONIC ENERGY METERS, SWITCHGEARS AND WIRES & CABLES

Our product gamut consists of HPL’s range of Metering Solutions like as Prepaid Metering Solutions.

Prepaid Metering Solutions

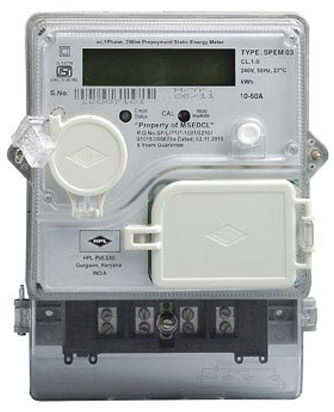

Single Phase Prepaid Meters

Salient Features
  • Available in Single Phase, Two Wire.
  • Range: 10-60A in Accuracy Class-1.
  • As per IS : 15884 : 2010.
  • Load can be disconnected in case the credit limit becomes Zero or the current exceeds the defined load limit.
  • Two latch ralays are provided for reconnection/disconnection of load.
  • Buzzer to give alarm in case of low credit/overload.
  • Data download through hard wired port for:
    (a) Last 25 tamper events
    (b) Load survey data for 45 days
Application
  • For Residential & Commercial Use.
View Description Enquiry

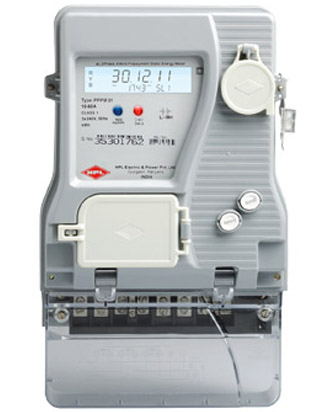

Three Phase Prepaid Meters

Salient Features
  • Available in Three Phase, Four Wire.
  • Range: 10-60A in Accuracy Class-1.
  • As per IS : 15884 : 2010
  • Load can be disconnected in case the credit limit becomes Zero or the current exceeds the defined load limit.
  • Three latch ralays are provided for reconnection/disconnection of load.
  • Buzzer to give alarm in case of low credit/overload.
  • Data download through hard wired port for:
    (a) Last 25 tamper events
    (b) Load survey data for 45 days
Application
  • For Residential & Commercial Use.
View Description Enquiry

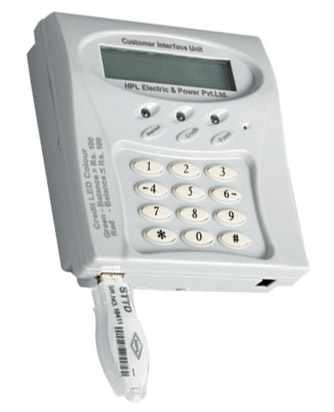

CIU & STTD

Salient Features
  • Consumer Interface Unit(CIU): When the meters are not mounted in the consumer Premises and access to the meters is not given to the meter; it is essential to provide the consumer, information on metering and to enable them to recharge the meters using tokens. For this purposes, a Consumer interface Unit (CIU) is used. This is a device used to view / access the display parameters of the meter and token entry.
  • Soft Token Transfer Device(STTD): To make this token charging activity more user friendly, Soft Token Transfer Device(STTD) is used to transfer tokens generated from the vending station / PC to the Pre-Payment meter. The STTD is USB (pen drive) like device. The tokens are transferred to this STTD from the vending station/PC. This STTD is then connected to the Consumer Interface Unit (CIU) through which the token is transferred to the pre-payment meter. It provides the consumers with an easy to use method to transfer the tokens to the meter without any error it also avoids manual entering of tokens from the keypad.
View Description Enquiry
