CITROEN SWITCHGEARS PVT. LTD is one of the LEADING AUTHORIZED DEALER & STOCKIST for HPL – ELECTRONIC ENERGY METERS, SWITCHGEARS AND WIRES & CABLES

Our product gamut consists of HPL’s range of Switchgears - Industrial Products like as Moulded Case Circuit Breaker (MCCB).

MCCB (Moulded Case Circuit Breaker)

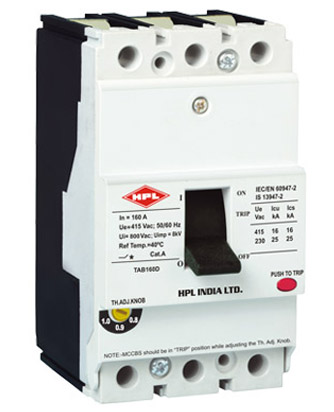

MCCB TAB

Salient Features
  • Available in various Frame Sizes - Rated current from 10A - 160A/ 63A - 250A /250A - 630A & in different breaking capacity (from 10kA to 65A) as per IS/IEC - 60947- 2
  • Available in both fixed & adjustable Thermal & Magnetic settings
  • Available in 1Pole, 2Pole,3Pole & 4Pole versions
  • FP version available with neutral fully protected
  • Adjustability- offers close protection to different load condition
  • Line Load reversibility
  • Low let through energy
  • Very compact in size
  • Wide range of internal & external accessories
  • Enhanced life
  • ROHS Compliant
  • Available in Enclosed Version
View Description Enquiry

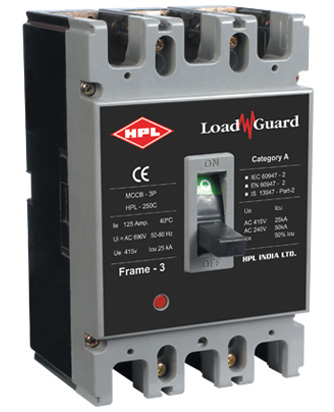

MCCB Load Guard

Salient Features
  • Available in various frame sizes - Rated current from 10A - 800A as per IS/IEC - 60947- 2
  • Wide range of breaking capacity available from 10kA to 65kA
  • Available in 2Pole,3Pole & 4Pole versions
  • Available in both fixed & adjustable magnetic settings
  • Low let through energy
  • Available of motor driven operation mechanism
  • Line Load reversibility
  • Positive isolation
  • High repeat accuracy- reliable protection
  • Available with wide range of accessories: shunt trip, under voltage, auxiliary contact, alarm contact & rotary handle
  • Also available in enclosed version
Enquiry

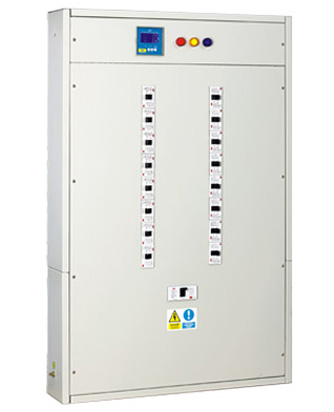

MCCB Distribution Panel

Salient Features
  • Range - 4,6,8,10,12 ways
  • No. of poles of MCCB -3/4, 415V AC
  • Incoming - 160A / 250A / 400A /630A
  • Outgoing - 160A / 250A
  • Fully Shrouded bus bar with high short circuit withstand
  • Multifunction Digital Metering - Optional
  • Provision for single door /double door
  • High Reliable tested solution
View Description Enquiry

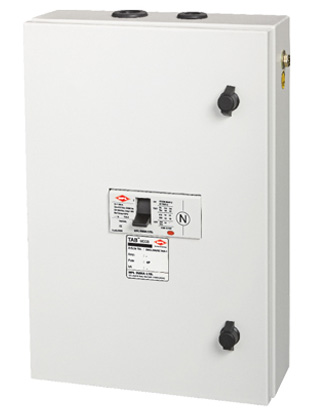

MCCB Enclosure

Salient Features
  • These environment friendly enclosures (For MCCB units) while offering precise overload & short circuit protections as standard, discharge the power switching function efficiently with enhanced life & human safety.
  • Minimum maintenance.
  • User friendly, robust & compact.
  • Highly reliable tested solution.
  • Suitable for Industrial, Domestic & Commercial Installations.
  • Extends Safety
Enquiry
