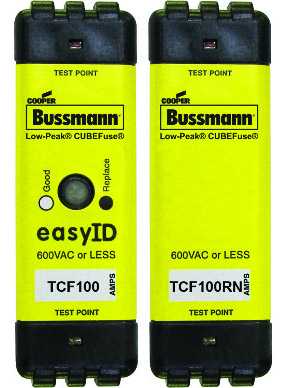

Description :

Finger-safe fuse and fuse holder system; dual-element, time-delay fuse; 10 seconds minimum operating time at 500% rated amps.

Ratings :

Volts: — 600Vac (or less), 300Vdc (or less)
Amps: — 1-100A
IR: — 300kA RMS Sym. (UL), 200kA RMS Sym. (CSA), 100kA DC (UL & CSA)

Agency Information :

CE, UL Listed Guide JFHR, File E4273, CSA Certified Fuse: Class 1422- 02, File 53787, UL Listed Fuse holder: Guide IZND, File E214079, CSA Certified Fuse holder: Class 6225-01, File 47235.

Description :

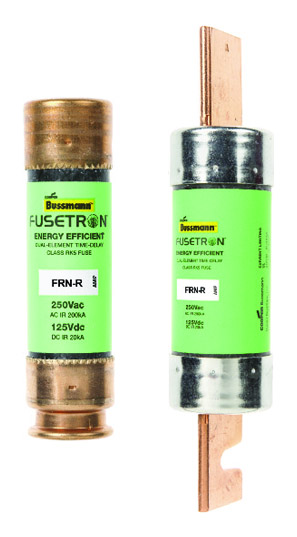

Dual-element, time-delay fuse – 10 seconds (minimum) at 500% rated amps (8 seconds for 0-30A sizes). Available with indication on select ratings (see Catalog Numbers table).

Ratings :

Volts: — 250Vac (or less), 125Vdc (⁄10-60A, 110-200A), 250Vdc (225-600A).
Amps: — ⁄10-600A
IR: — 200kA RMS Sym, 20kA DC

Agency Information :

CE, Std. 248-12, Class RK5, UL Listed, Guide JDDZ, File E4273, CSA Certified, Class 1422-01, File 53787.

Description :

A range of NH fuse links specifically designed for protecting and isolating photovoltaic array combiners and disconnects. These fuse links are capable of interrupting low overcurrents associated with faulted PV systems (reverse current, multi-array fault).

Ratings :

Volts: — 1000Vdc
Amps: — 32-160A

Agency Information :

UL Listed, Guide JFGA, File E335324. Photovoltaic to UL 2579,IEC 60269-6 gPV, CSA. CCC pending.

Description :

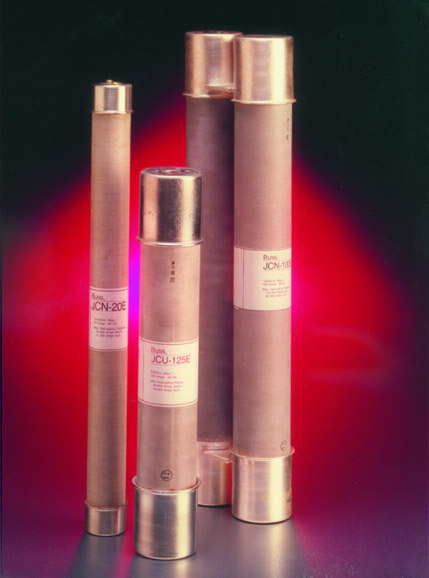

Indoor/enclosure E-rated medium voltage, currentlimiting fuses for feeders and power transformers with blown fuse indication.

Ratings :

Volts: — 2750-8300V
Amps: — 750A
IR: — 40-63kA Sym, 60-100kA ASYM

Features :

Physically dimensioned for retrofitting in existing hardware, Open fuse indicator for ease in troubleshooting.

Description :

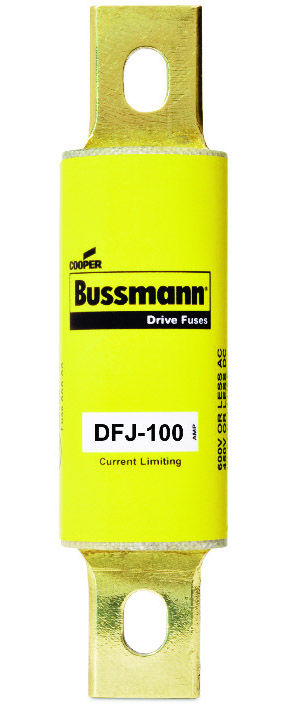

High speed, current-limiting fuse. The Bussmann Drive Fuse will provide maximum protection for AC and DC drives and controllers and meet NEC branch circuit protection requirements. The Drive Fuse has the lowest. It of any branch circuit fuse to protect power semiconductor devices that utilize diodes, GTOs, SCRs and SSRs.

Ratings :

Volts: — 600Vac (or less), 450Vdc (or less)
Amps: — 1-600A
IR: — 200kA RMS Sym., 100kA DC

Agency Information :

CE, Std. 248-8, Class J, UL Listed, Guide JDDZ, File E4273, CSA Certified, Class 1422-02, File 53787.

Description :

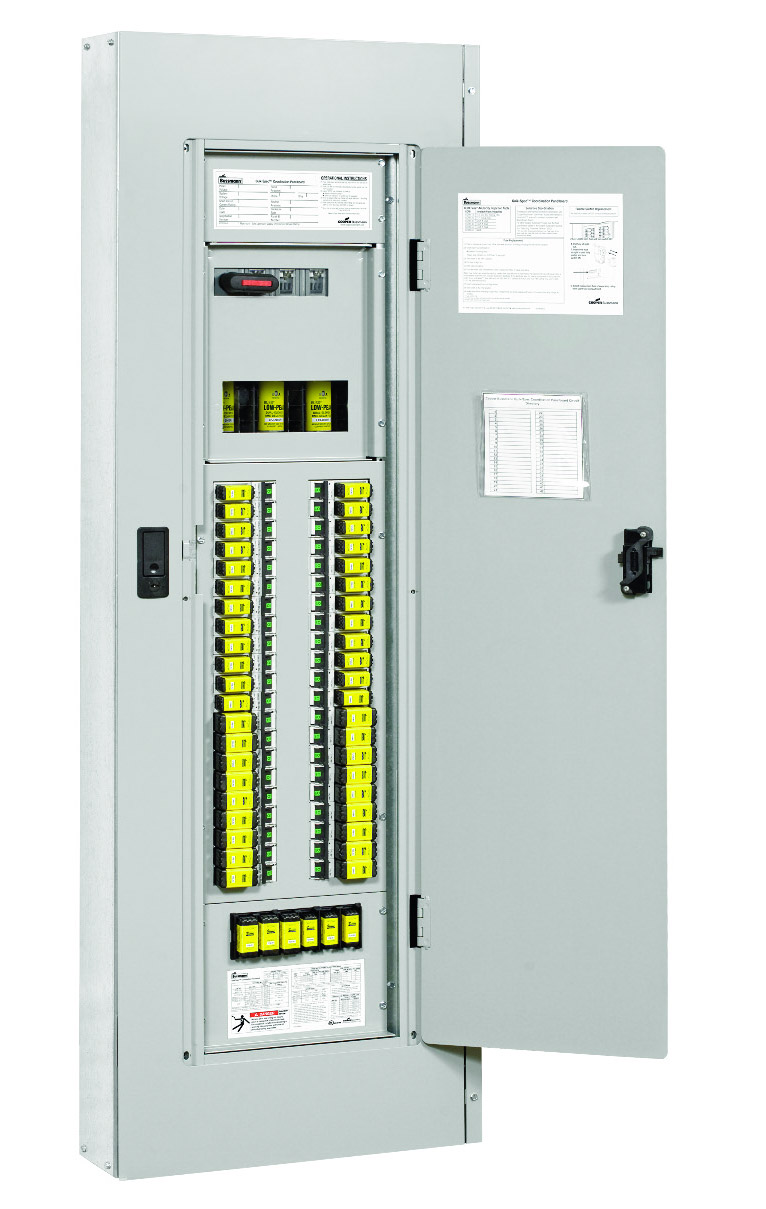

Configurable fusible panelboard with 30-400A mains and branches from 1-100A rated 600Vac.

Ratings :

Volts: — 600Vac (or less), 125Vdc (or less)
Amps: — 30, 60, 100, 200, 225 or 400A

Options :

Main : MLO (main lug only), Fused disconnect switch, Non-fused disconnect switch
Enclosure : NEMA 1 or 3R, Standard size panelboard (20˝ W x 5˝ D x various heights), For other ratings consult factory
Panel : Feed; Top & Bottom***, Mounting; Surface or Flush****, Door/Trim; Regular or Door-in-Door****
Branch : Circuits; Up to 18, 30 and 42*, Amps; Up to 100A, Type; 1-, 2- and 3-Pole
Fuse : Six-fuse spare fuse compartment, Time-delay or UPS/critical applications (fast-acting) CUBEFuse™

Agency Information :

UL Listed to UL 67, complies with NFPA 70 (NEC®; National Electric Code)

Description :

The ‘CH’ line of modular fuse holders accommodates many fuses from around the world, including North American Class-CC, Midget, Class gR, aR HSF, and IEC Industrial Ferrule (Class gG and aM) in four physical sizes: 8x32, 10x38, 14x51 and 22x58mm.

Ratings :

600V/30A (UL), 690V/32A (IEC)

Agency Information :

UL File E14853, Guide IZLT Listed, IZLT2 Recognized , CSA: File 47235, CHPV and CHM - Class 6225-30, CHCC - Class 6225-01

Features :

Integral dovetails allow snapping together multiple poles at point-of-use for greater application flexibility

Factory assembled two- and three-pole configurations available
Up to four mounting holes per pole increase installation flexibility

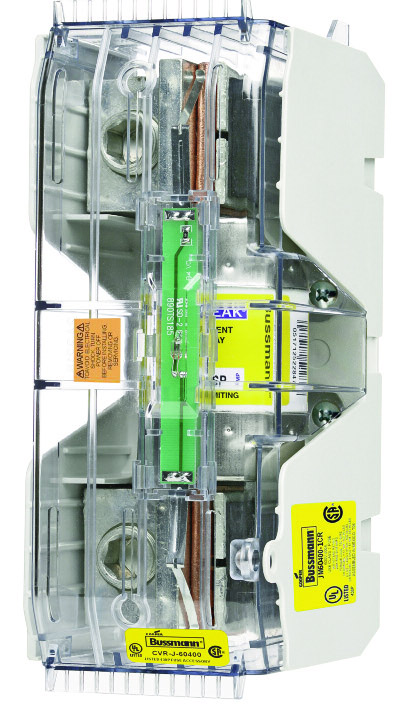

Ratings :

Volts: — 250V, 600V
Amps: — 70-600A
SCCR : — 200kA (Class R & J), 10kA (Class H & K)

Agency Information :

UL - Listed cULus, E14853 – IZLT & IZLT7, CSA - Certified 47235 – 6225-01

Features :

Enclosed, safer installation; IP20 finger-safe under specific conditions.
High short-circuit current ratings up to 200kA : PDBs do not have to be the weak link in achieving high SCCR for an industrial control panel

Electrical :

600Vac/dc (UL 1953), 690Vac/dc (IEC)
IP20 finger-safe under specific conditions
Short-circuit current ratings up to 200kA, see table
Ampacities up to 760 amps

Agency / Standards :

UL Listed 1953, Guide QPQS, File E256146
CSA Certified, Class 6228-01, File 47235
IEC 60947-7-1
IEC 60529, IP20 (finger-safe) under specific wiring conditions

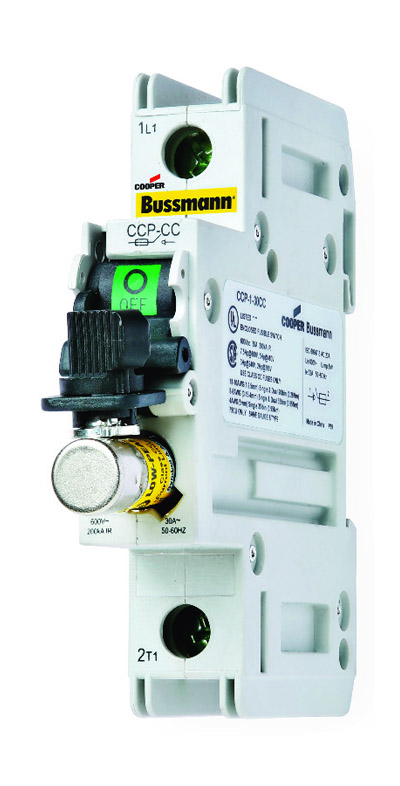

Features :

IP20 Finger-safe construction with #10 or larger wire

Switch interlock prohibits removing the fuse under load

Agency Information :

CE Compliant
RoHS Compliant
For Class CC fuse version
- UL 98 Listed, File E302370, Guide WHTY
- cULus to CSA Standard 22.2 No. 4-04, File 302370, Guide WHTY7
For UL Midget and 10X38 IEC fuse version
- UL 508 Listed, File E161278, Guide 8R29
- cULus Certified 22.2 No. 14-05
- IEC 60947-3 AC23A
- IEC 60947-3 DC23A

Description :

The Bussmann SurgePOD™ HEAVY DUTY is a Type 1 UL Listed 1449 Edition surge protective device suitable for installation on both the loadside or lineside of the service entrance overcurrent protective device.

Available in voltage and system specific versions to match electrical system and equipment requirements. The SurgePOD HEAVY DUTY delivers optimum surge protection using advanced patent pending SurgePOD™ module featuring thermal disconnect technology that eliminates the need for additional overcurrent protection.

Parallel connection to the electrical system permits the SurgePOD HEAVY DUTY SPD to be installed on any ampacity panel.

Patented Bussmann SurgePOD module technology eliminates the need for additional fusing

Voltage specific models precisely match and protect electrical systems and equipment up to 600Vac

Compact UV resistant NEMA 4X for indoor or outdoor applications

easyID™ LED status indicator provides surge protection status at a glance
