Square Body Fuses
US Style 1000V (IEC) / 50-1400A
Description :
Square body US Style high speed fuses for the protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters.
Ratings :
Volts: — 1000Vac
Amps: — 50-1400A
IR: — 125kA RMS Sym.
Operating Class :
aR
Agency Information :
CE, Designed and tested to IEC 60269: Part 4, UL Recognized.

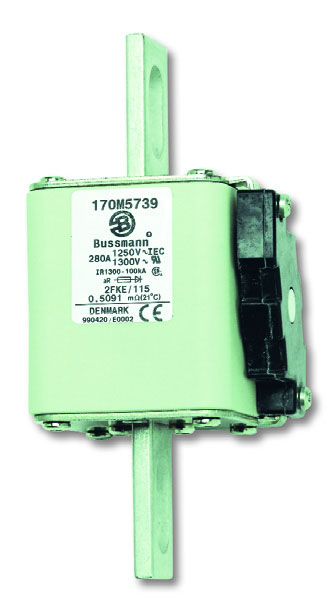

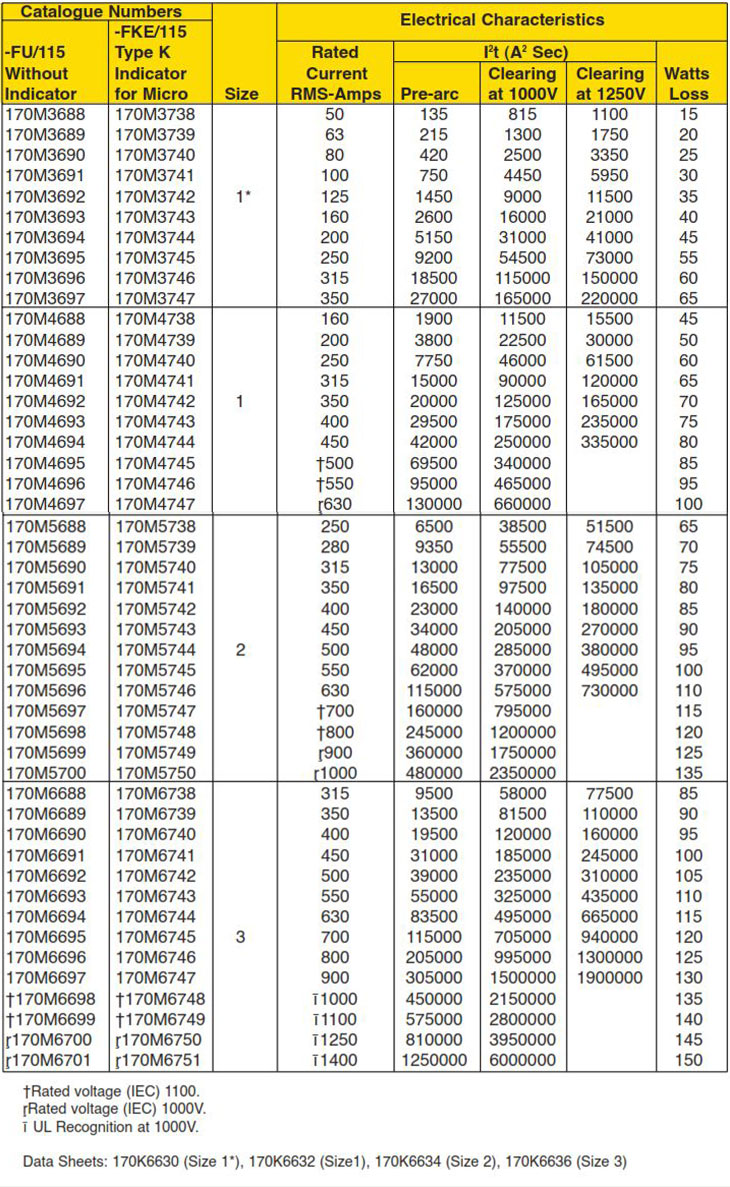

US Style 1250V - 1300V (IEC/UL) / 50-1400A
Description :
Square body US Style high speed fuses for the protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters.
Ratings :
Volts: — 1250Vac (IEC), 1300Vac (UL)
Amps: — 50-1400A
IR: — 100kA RMS Sym.
Operating Class :
aR
Agency Information :
CE, Designed and tested to IEC 60269: Part 4, UL Recognized. Consult Cooper Bussmann for UL Recognition/CSA Component Acceptance status.

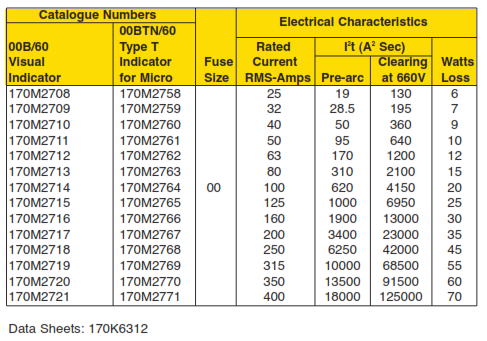

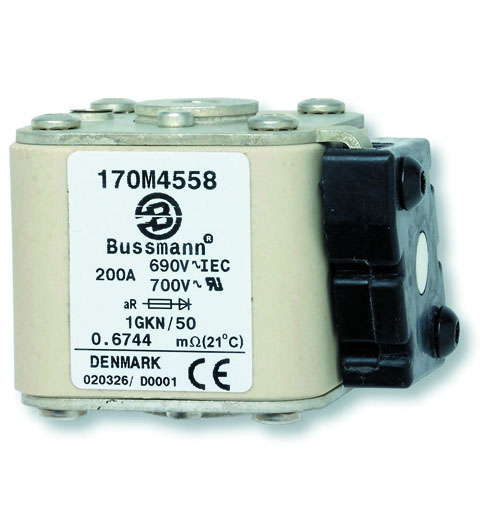

Flush End Contact | 690V - 700V (IEC/UL) / 25-400A
Description :
Square body flush end contact high speed fuses for the protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters.
Ratings :
Volts: — 690Vac (IEC)
Amps: — 25-400A
IR: — 200kA RMS Sym.
Operating Class :
aR
Agency Information :
CE, Designed and tested to IEC 60269: Part 4, UL Recognized.

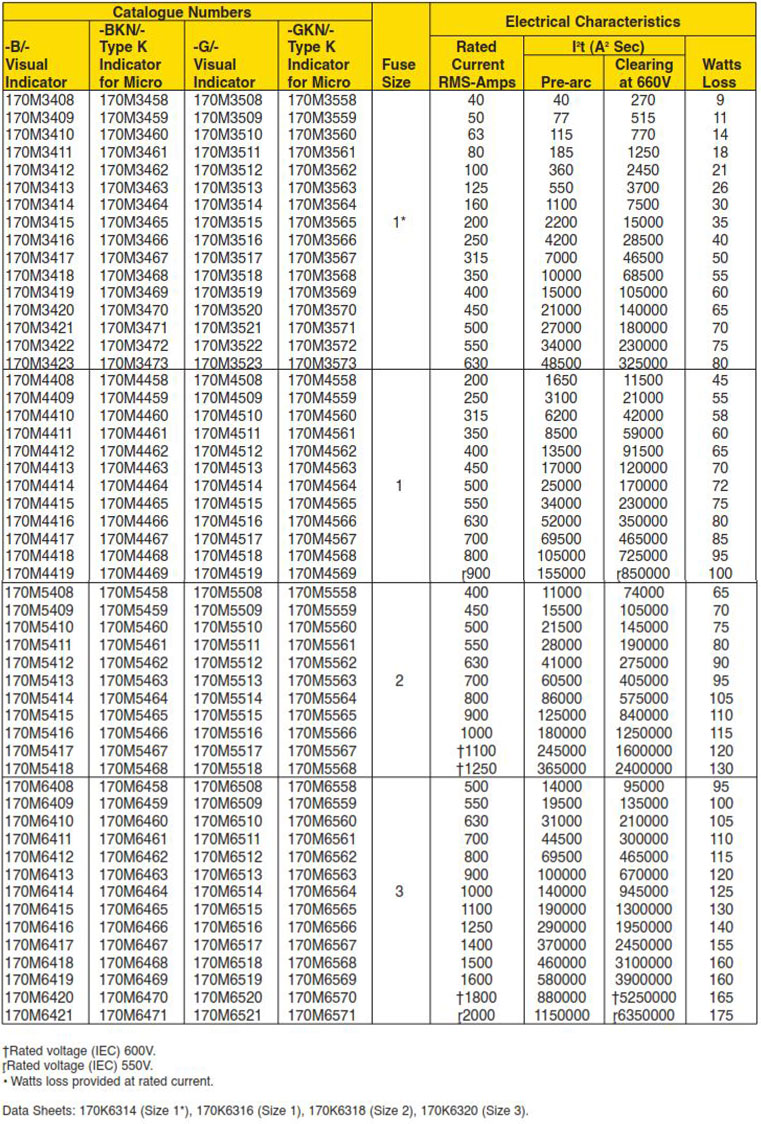

Flush End Contact 690V - 700V (IEC/UL) / 40-2000A
Description :
Square body flush end contact high speed fuses for the protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters.
Ratings :
Volts: — 690Vac (IEC), 700Vac (UL)
Amps: — 40-2000A
IR: — 200kA RMS Sym.
Operating Class :
aR
Agency Information :
CE, Designed and tested to IEC 60269: Part 4, UL Recognized. Consult Cooper Bussmann for UL Recognition / CSA Component Acceptance Status.

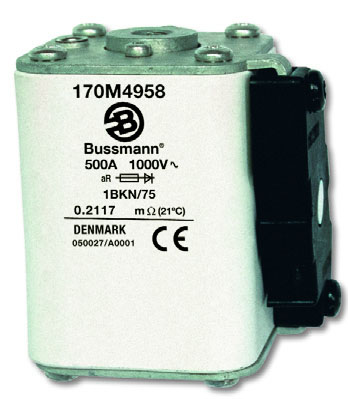

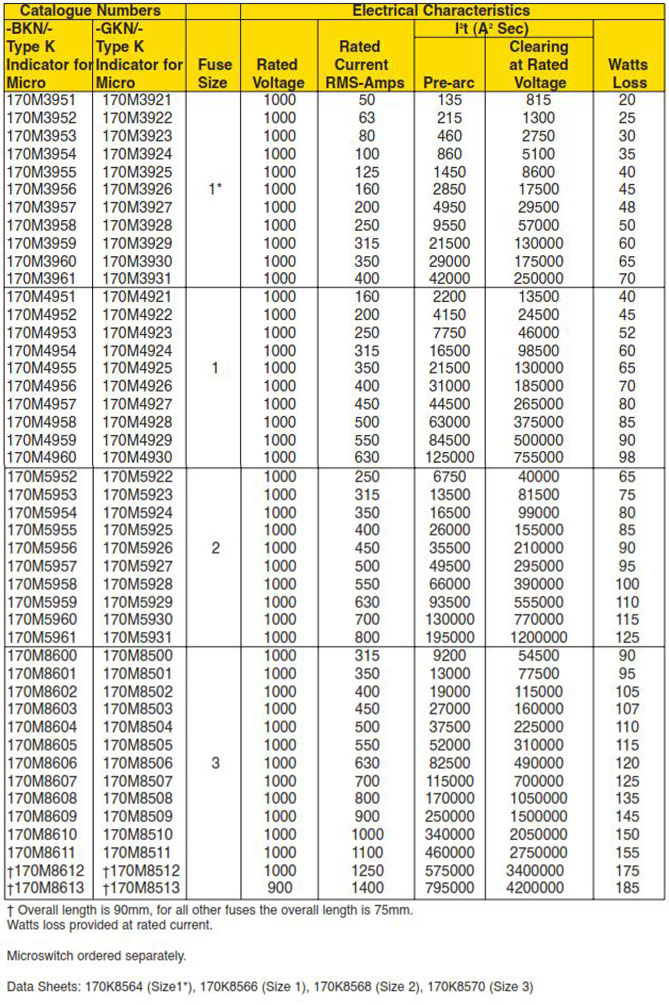

Flush End Contact 1000V (IEC) / 50–1400A
Description :
Square body flush end contact high speed fuses for the protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters.
Ratings :
Volts: — 1000Vac (IEC)
Amps: — 50-1400A
IR: — 125kA RMS Sym.
Operating Class :
aR
Agency Information :
CE, Designed and tested to IEC 60269: Part 4, UL Recognized for sizes 2 & 3 only.

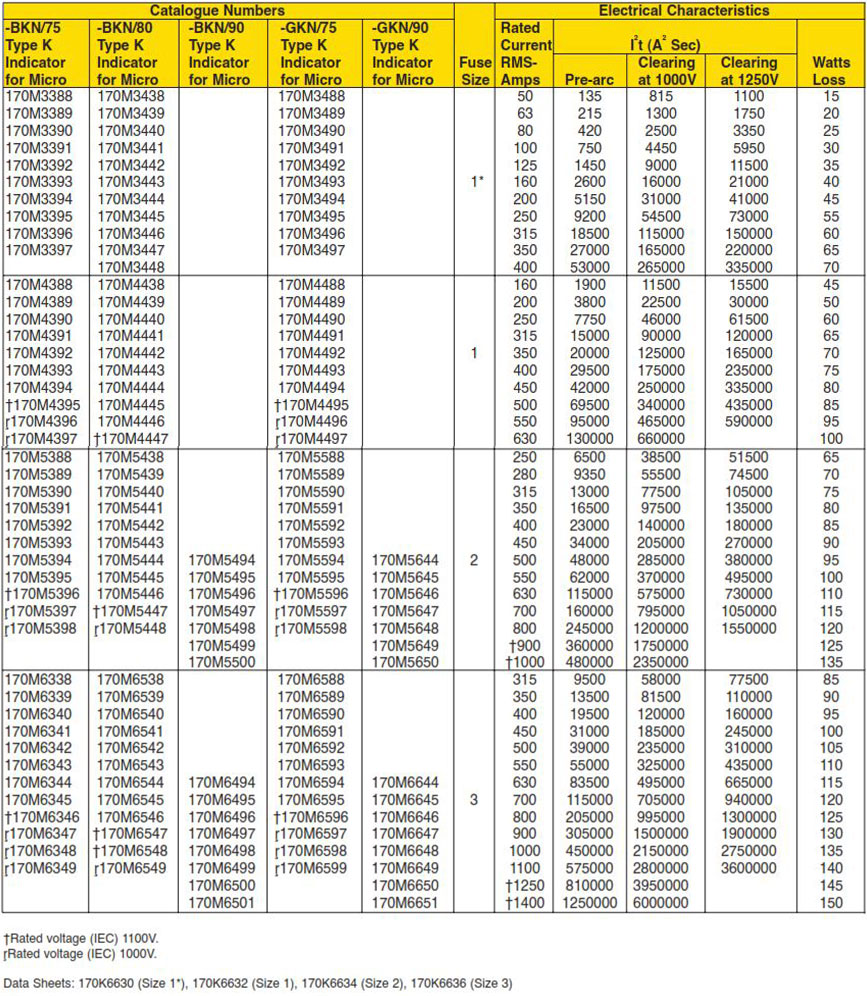

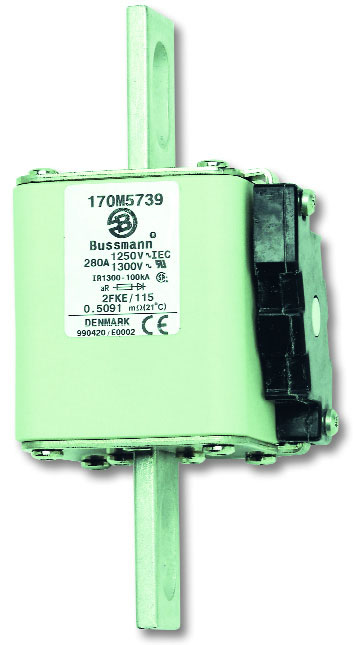

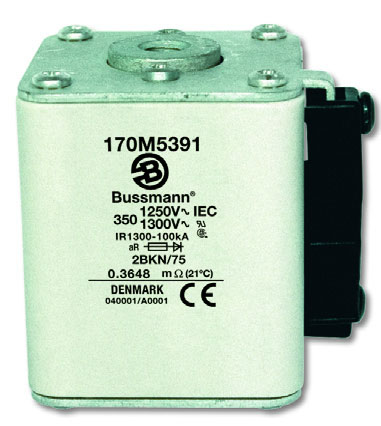

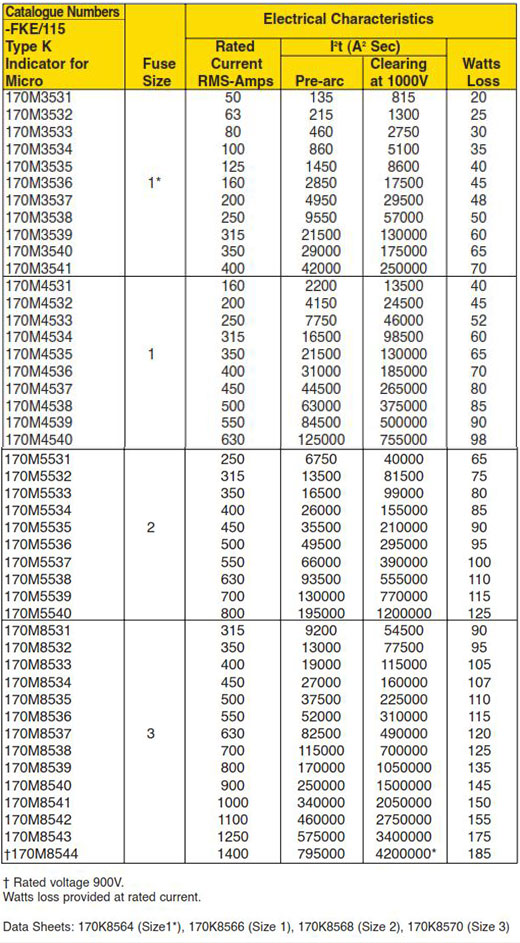

Flush End Contact 1250V - 1300V (IEC/UL) / 50-1400A
Description :
Square body flush end contact high speed fuses for the protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters.
Ratings :
Volts: — 1250Vac (IEC), 1300Vac (UL)
Amps: — 50-1400A
IR: — 100kA RMS Sym
Operating Class :
gR
Agency Information :
CE, Designed and tested to IEC 60269: Part 4, UL Recognized. Consult Cooper Bussmann for UL Recognition/CSA Component Acceptance status..

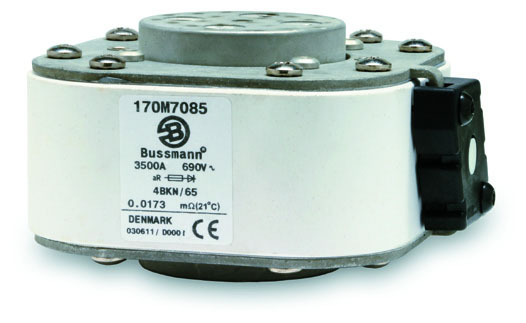

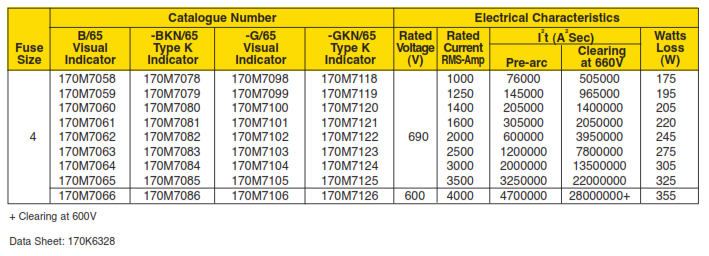

Flush End Contact - Size 4 690V : 1000 – 4000A
Description :
High speed square body fuses, for the protection of the power rectifier section of the equipment.
Ratings :
Volts: — 690Vac
Amps: — 1000-4000A
IR: — 200kA RMS Sym.
Operating Class :
gR (10-32A, 50-63A) , aR (40A, 80-1600A)
Agency Information :
CE, Designed and tested to IEC 60269: Part 4, UL Recognized.

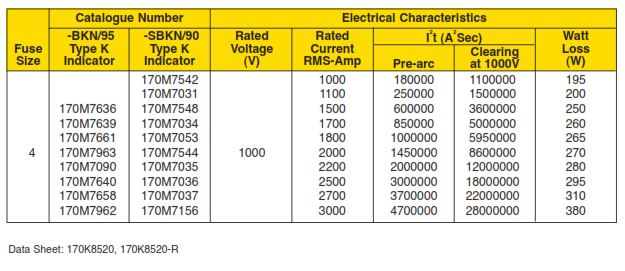

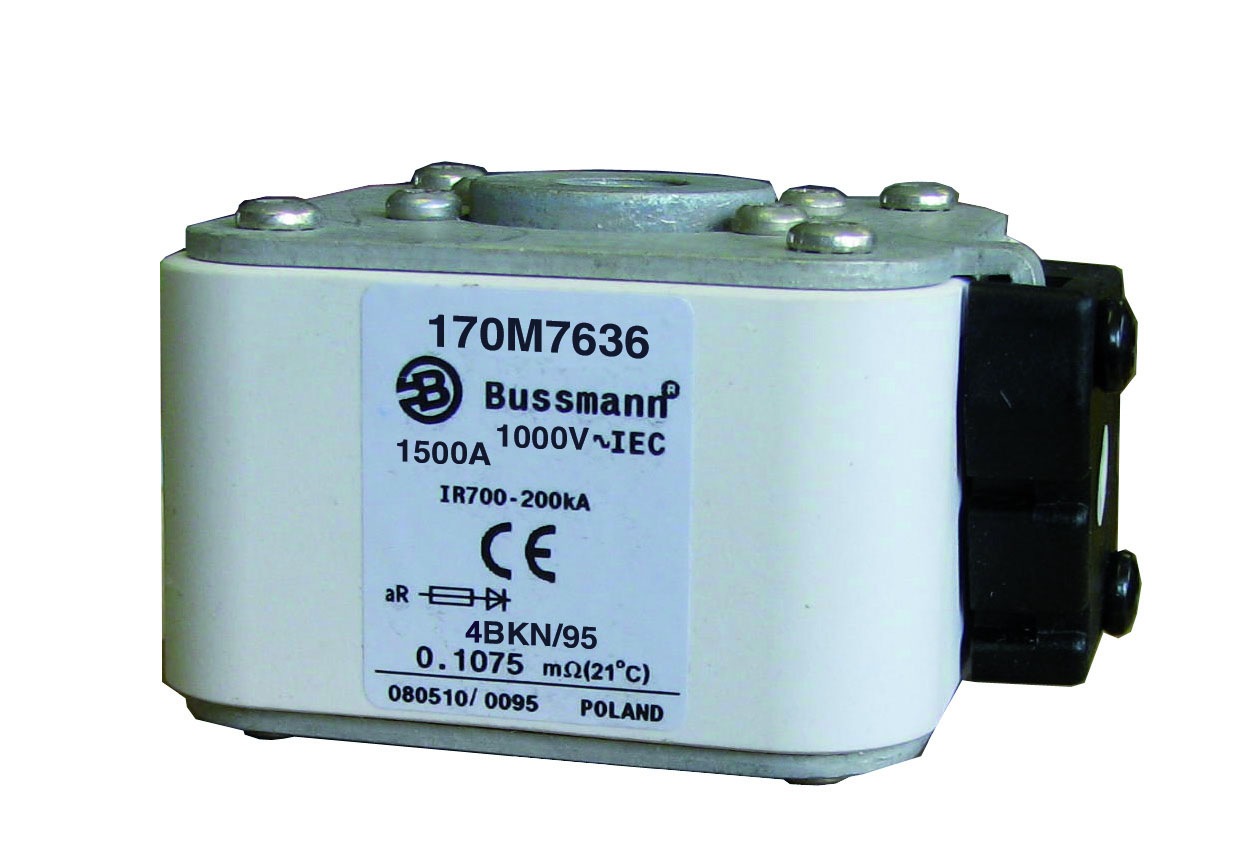

Flush End Contact - Size 4 1000V (IEC) : 1000 – 3200A
Description :
High speed square body fuses, for the protection of the power rectifier section of the equipment.
Ratings :
Volts: — 1000Vac
Amps: — 1000-3200A
IR: — 125kA RMS Sym.
Operating Class :
aR
Agency Information :
CE, designed and tested according to IEC 60269: Part 4.

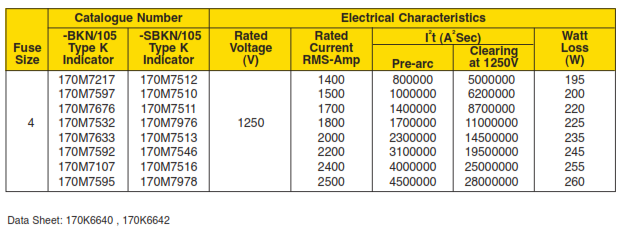

Flush End Contact - Size 4 1250V (IEC) / 1400 – 2500A
Description :
High speed square body fuses, for the protection of the power rectifier section of the equipment.
Ratings :
Volts: — 1250Vac
Amps: — 1400-2500A
IR: — 125kA RMS Sym.
Operating Class :
aR
Agency Information :
CE, designed and tested according to IEC 60269 Part 4.

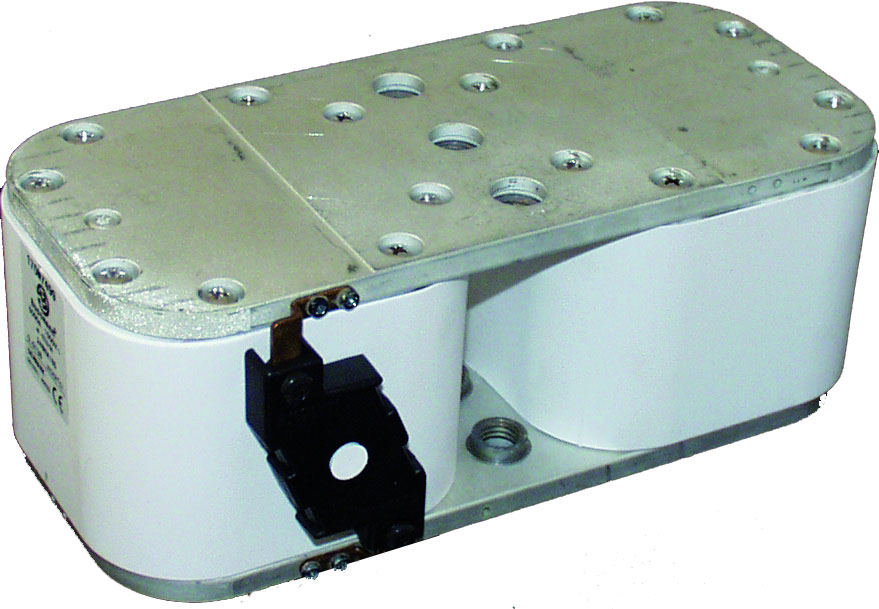

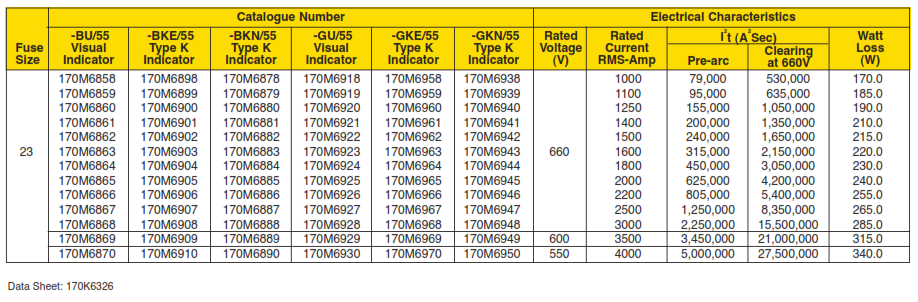

Flush End Contact - Size 23 660V (IEC) / 1000 – 4000A
Description :
High speed square body fuses, for the protection of the power rectifier section of the equipment.
Ratings :
Volts: — 660Vac
Amps: — 1000-4000A
IR: — 300kA RMS Sym.
Operating Class :
aR
Agency Information :
CE, designed and tested according to IEC 60269 Part 4.
