CITROEN SWITCHGEARS PVT. LTD is one of the LEADING AUTHORIZED DEALER & STOCKIST for SOCOMEC.
Our product gamut consists of SOCOMEC range of METERING like as Active energy meters and pulse concentrators.

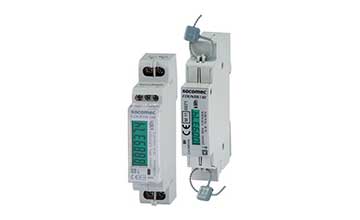

The COUNTIS E0x is a modular active electrical energy meter displaying the total energy consumed (kWh) directly on its LCD display. It is designed for single-phase load metering and is used for direct connections of up to 32 A. The COUNTIS E02 and E04 has MID certification.
The COUNTIS E0x is only 1 module wide.
The pulse output enables the kWh consumption to be reported to a remote system (PC/BMS) so that it can be analysed for billing, energy saving or energy cost management purposes.

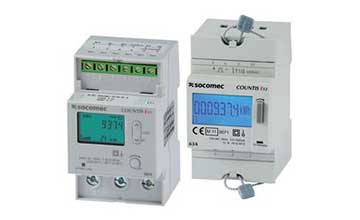

The COUNTIS E1x is a modular active electrical energy meter displaying the energy and power consumed (kWh and kW) directly on its backlit LCD display. It is designed for single-phase load metering and is used for direct connections of up to 63 or 80 A depending on the modele). COUNTIS E12, E14 and E16 have MID certification.
To enable the remote reporting of energy consumption, COUNTIS E1x are provided with either a pulse output or an RS485 communication output, with MODBUS or M-BUS protocol. In addition to their reporting functions, COUNTIS E1x with RS485 can be configured remotely and enable access to multi-measurement values.
Two tariffs are available and can be easily accessed through the meter’s display. Each tariff can be utilised to assign energy metering to different time slots (high and low demand hours) or different sources (normal/backup).

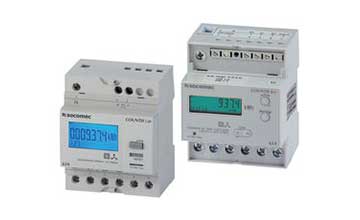

The COUNTIS E2x is a modular active electrical energy meter displaying the energy and power consumed (kWh and kW) directly on its backlit LCD display. It is designed for three-phase load metering and is used for direct connections of up to 63 A.
To enable the remote reporting of energy consumption, COUNTIS E2x are provided with either a pulse output or an RS485 communication output, with MODBUS or M-BUS protocol. In addition to their reporting functions, COUNTIS E2x with RS485 can be configured remotely and enable access to multi-measurement values.
Two tariffs are available and can be easily accessed through the meter’s display. Each tariff can be utilised to assign energy metering to different time slots (high and low demand hours) or different sources (normal/backup).

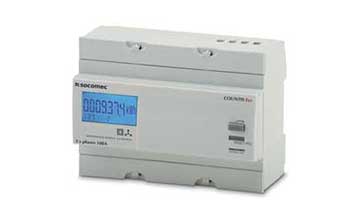

The COUNTIS E3x is a modular active electrical energy meter displaying the energy and power consumed (kWh and kW) directly on its backlit LCD display. It is designed for three-phase load metering and is used for direct connections of up to 100 A. COUNTIS E32, E34 and E36 are MID certified.
To enable the remote reporting of energy consumption, COUNTIS E3x are provided with either a pulse output or an RS485 communication output, with MODBUS or M-BUS protocol. In addition to their reporting functions, COUNTIS E3x with RS485 can be configured remotely and enable access to multimeasurement values.
The product is protected against phase/ neutral inversion and detects wiring errors. This simplifies the installation and commissioning, thereby reducing associated costs, and ensures that the device operates correctly.
The COUNTIS E4x is a modular active and reactive electrical energy meter displaying the energies and active power consumed (kWh, kvarh and kW) directly on its backlit LCD display. It is designed for three-phase load metering with connection via CT and is suitable for applications of up to 6000 A (3000 A for MID). COUNTIS E42, E44 and E46 are MID certified.
To enable the remote reporting of energy consumption, COUNTIS E4x are provided with either a pulse output or an RS485 communication output, with MODBUS or M-BUS protocol. In addition to their reporting functions, COUNTIS E4x with RS485 can be configured remotely and enable access to multimeasurement values.
The product is protected against phase/neutral inversion and detects wiring errors. This simplifies the installation and commissioning, thereby reducing associated costs, and ensures that the device operates correctly.

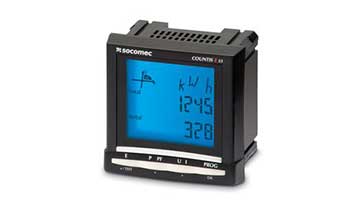

The COUNTIS E5x is a panel mounted active and reactive electrical energy meter displaying energy and multi-measurement values directly on its large backlit LCD display. It is designed for utilisation on three-phase or single-phase networks with connection via CT and is suitable for applications of up to 6000 A. The CT ratio can be configured by the user via the keypad and the display, or via RS485 MODBUS communication (E53).
To enable the remote reporting of energy consumption, COUNTIS E5x are provided with either a pulse output (E50) or an RS485 MODBUS communication output (E53). Remote configuration of the Countis E53 is possible via RS485 MODBUS communication.
The COUNTIS E5x is protected against phase/neutral inversion and has an integrated test function which can be utilised to detect wiring errors. This function enables CT installation errors to be corrected without having to remake connections. This simplifies the installation and commissioning, thereby reducing associated costs, and ensures that the device operates correctly.

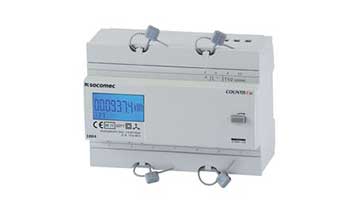

The COUNTIS E63 is a modular active electrical energy meter which provides metering for three single-phase loads, with direct connection of up to 100 A. It directly displays the total and partial energy and power (kWh and kW) consumed by each single-phase load.
Due to the integration of three single-phase meters in the same case (7 modules wide), the COUNTIS E63 provides significant space-saving.
Advanced multi-measurement functions are available via RS485 MODBUS communication:
• Instantaneous currents: I1, I2, I3
• Instantaneous voltages: U1, U2, U3
• Instantaneous power: 3P, 3S
• Instantaneous power factors: 3PF
• Load curves for each of the 3 phases: Viewing of average positive active power consumption over a programmable period.
