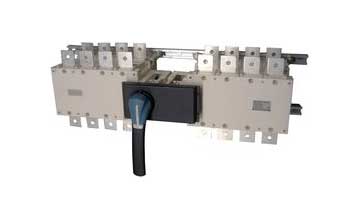

BY-PASS ATS switches are manual four pole transfer switches with positive break indication. They are designed to isolate ATS type electrical equipment (automatic transfer switch) or UPS, with minimum interruption to the load supply. Integrating a SOCOMEC transfer switch into the installation enables source selection when in Bypass (see operating principle below).

Advantages

Stable positions

BY-PASS ATS switches have 3 stable positions which are not affected by voltage drops or vibrations.

On load switching

Thanks to its AC-22 characteristics, tested in accordance with standard IEC 60947-3, the BY-PASS ATS enables on load switching.

Secured breaking

Simultaneous upstream and downstream isolation and fully visualised breaking.

A complete solution

The BY-PASS ATS is a single product offering a genuine solution incorporating both an equipment isolation function and a switching function.
