Residual Current Circuit-breaker (RCCB)
CITROEN SWITCHGEARS PVT. LTD is one of the LEADING AUTHORIZED DEALER & STOCKIST for ABB – LOW VOLTAGE SWITCHGEARS.
Our product gamut consists of ABB’s range of Residual Current Circuit-breaker (RCCB).

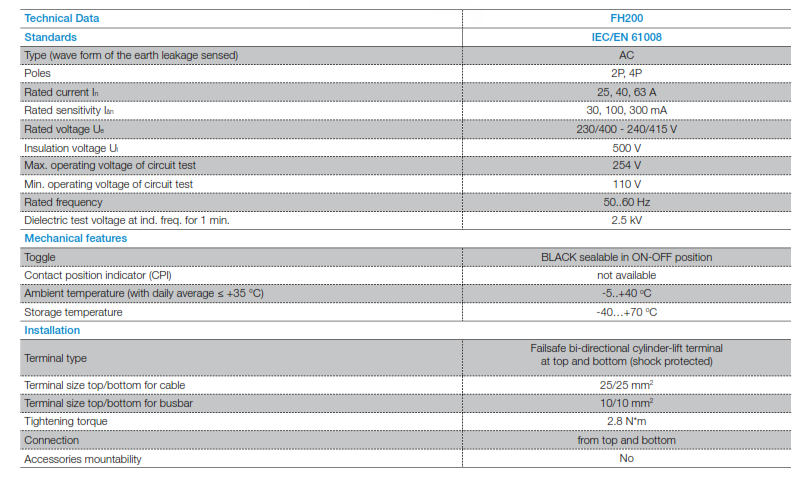

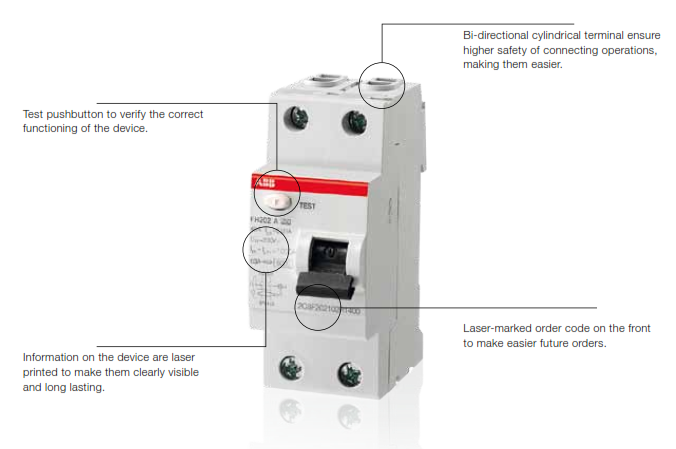

FH 200 Series
RCBO - DS200M series
Features
- Compiles to standard to IEC/EN 61009
- DS201 available in 4.5kA,6kA & 10kA breaking capacity
- Available in AC, A and APR types to meet all protection needs
- B and C characteristics with rated current up to 40 A available on all the versions
- Contact Position Indicator (CPI) to indicate the exact information of the circuit-breaker status
- Equipped with an RFid tag accor. to standard ISO/IEC FCD 15693-3 to authenticate the product.
- Bidirectional cylinder-lift terminals for easier the parallel feed
RCCB Blocks With-
- Residual Current Circuit-breaker with Over current Protection Blocks
- Solution for unwanted tripping - AP-R type (high immunity)

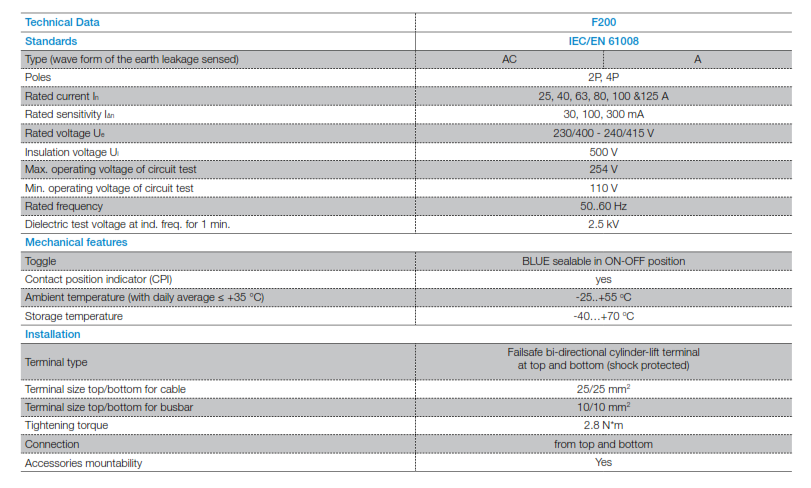

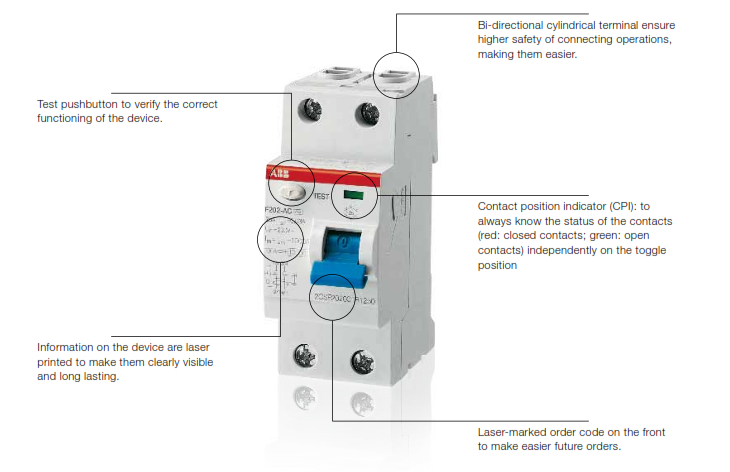

- RCCB - F 200 series: AP-R (high immunity)
- Auxiliary elements and accessories for MCBs S 200 and RCDs F 200 and DS 200 series
- Auxiliary elements for MCBs S 200, RCDs F 200 and DS 200
- Overall dimensions
