CITROEN SWITCHGEARS PVT. LTD is one of the LEADING AUTHORIZED DEALER & STOCKIST for ABB – LOW VOLTAGE SWITCHGEARS.
Our product gamut consists of ABB’s range of Miniature Circuit - Breaker (MCB).

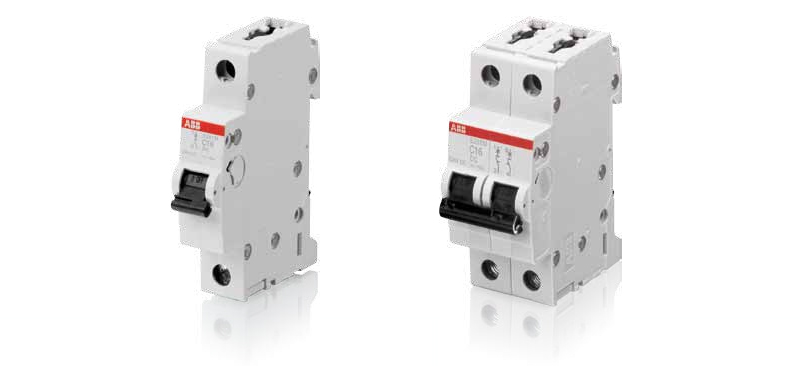

Miniature Circuit - Breaker (MCB)

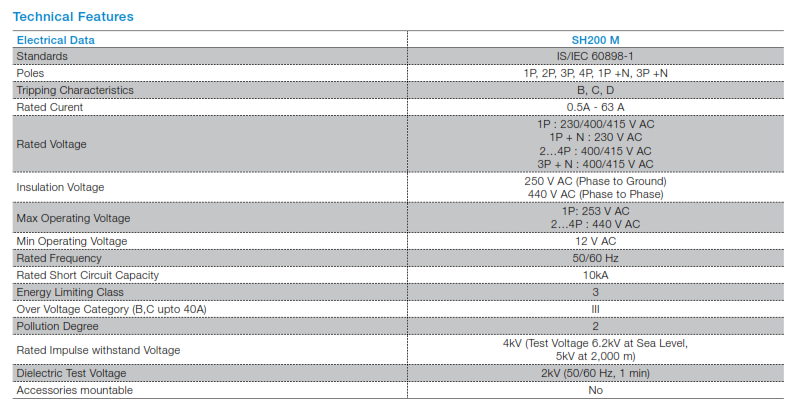

SH200M Series

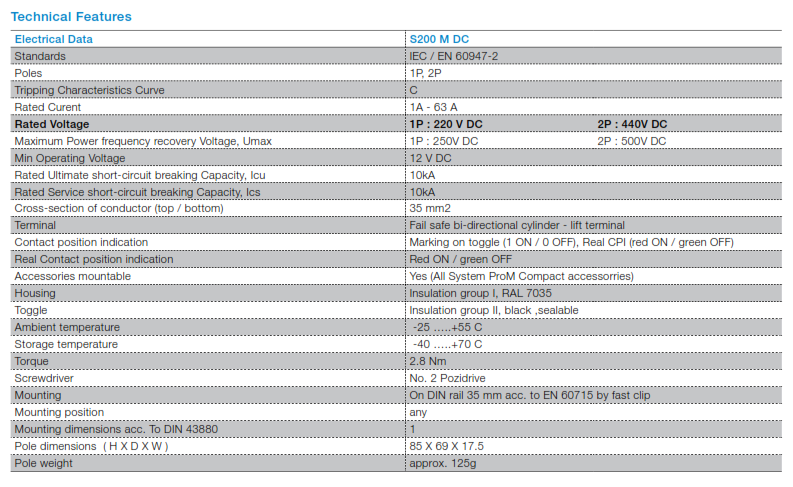

S200M DC - MCB for DC application
S200 M DC MCB in System pro M compact range impresses with its performance range, approvals and high inbuilt short circuit breaking capacity in DC applications. S200 M DC MCBs can be used in 1-pole version at 220V DC and in 2-pole version up to 440V DC. During the installation process it is necessary to take into account, the polarity marked on the device.
S280 Series
Features :
- Breaking capacity - 6kA
- Tripping characteristics - C curve
- Suitable for -25ºC to +55ºC ambient temperatures
- Standards : Conforms to IEC60898, IEC60947-2

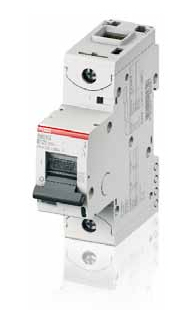

S800 Series - High Perfomance MCB
Features :
- Compiles to standards IEC 60947-2 & EN 60898-1
- Compact size : One size up to 125A
- Compact performance :Selective and back-up characteristics
- Does not let go: The interchangeable terminal adapter. Cage terminals or ring lugs
- On the safe side: Operating status display.
- Simple and flexible: Accessories fitted by the customer
The S800 range
- S800S (50kA) upto 125A
- S800N (36kA) upto 125A
- S800C (25kA) upto 125A
- S800B (16kA) upto 125A
- S800PV-S (upto 1200V DC & upto 125A)
- S800PV-M (upto 1200V DC & upto 125A)
