CITROEN SWITCHGEARS PVT. LTD is one of the LEADING AUTHORIZED DEALER & STOCKIST for SCAME - PLUGS AND SOCKETS, ENCLOSURES AND ASSEMBLIES.
Our product gamut consists of SCAME range of Plugs and Sockets like as Interlocked Switch Socket Outlets.
Switch Socket Outlet With Interlock

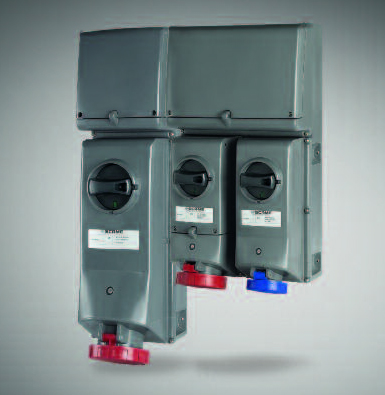

OMNIA Series
Interlocked Switch Socket Outlets

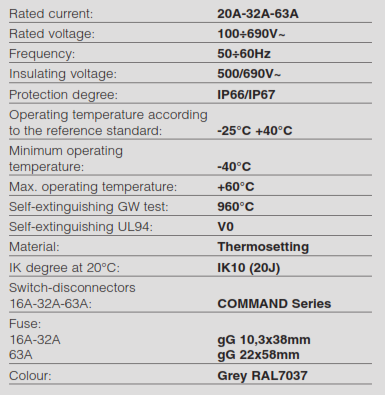

Technical Characteristics
Reference Standards
EN 60309-1
Plugs, socket outlets and couplers for industrial purposes. Part 1: general requirements.
EN 60309-2
Plugs, socket outlets and couplers for industrial purposes. Part 2: dimensional inter changeability requirements for pin and contact-tube accessories of harmonised configurations.

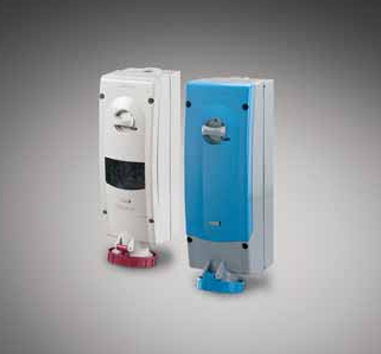

ADVANCE2 Series
Interlocked Switch Socket Outlets

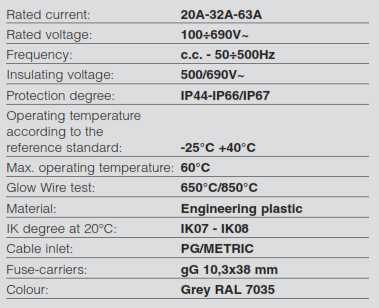

Technical Characteristics
Reference Standards
EN 60309-1EN 60309-1
Plugs, socket outlets and couples for industrial purposes.
Part 1: general requirements.
EN 60309-2
Plugs, socket outlets and couples for industrial purposes. Part 2: dimensional inter changeability requirements for pin and contact-tube accessories of har monised configurations.

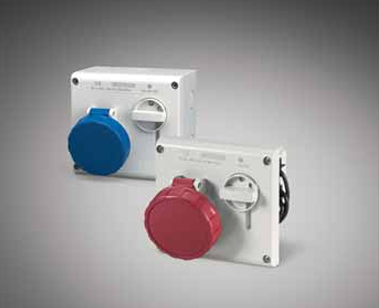

ADVANCE-GRP Series
Switch Interlocked Socket Outlets

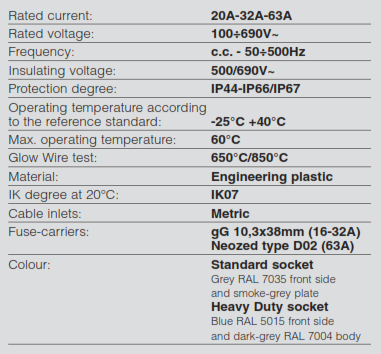

Technical Characteristics
Reference Standards
EN 60309-1
Plugs, socket outlets and couplers for industrial purposes. Part 1: general requirements.
EN 60309-2
Plugs, socket outlets and couplers for industrial purposes. Part 2: dimensional interchangeability requirements for pin and contact-tube accessories of harmonised configurations.
EN 60309-4
Plugs, socket-outlets and couplers for industrial purposes. Part 4: Switched socket-outlets and connectors with or without interlock.
