CITROEN SWITCHGEARS PVT. LTD is one of the LEADING AUTHORIZED DEALER & STOCKIST for SOCOMEC.
Our product gamut consists of SOCOMEC range of METERING like as Wireless Metering.

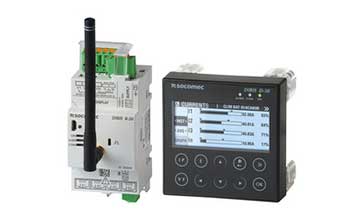

The DIRIS B-30 is a measuring device in a modular format that communicates wirelessly or RS485. The 4, RJ12 independent current inputs of the device allow it to manage several types and numbers of circuits :for example, 4 single-phase loads or 1 three-phase load + 1 single-phase load.
The DIRIS B-30 is connected to current sensors (RJ12 connection) that are suitable for all types of installation: solid TE, split-core TR, and flexible TF current sensors.
A rapid RJ12 connection makes wiring easy and reliable and prevents wiring errors. Automatically addressing and configuring the product (communication address, load type, type and ratio of current sensor) allow you to simplify implementation and to save time.
Class 0.2 for the meter alone.
Class 0.5 from 2% to 120% of nominal current for the global measurement chain (associated with TE/TF current sensors).
4 current measurement inputs allow you to configure multiple circuits in order to optimise the number of measurement devices per installation.
The DIRIS B-30 can be connected to:
- a remote DIRIS D-30 screen for displaying measurement and metering data.
- a DIRIS G gateway for centralisation and communication of data wirelessly or via RS485 and Ethernet.
- optional modules to communicate in BACnet IP, BACnet MSTP and PROFIBUS DP protocol. Digital or analogue input/output modules can also be connected.
TE, TR and TF current sensor ranges can be connected to DIRIS Digiware and DIRIS B-30 via a rapid RJ12 connection. Various accessories are available to allow the installation of sensors in all panel configurations.
Thanks to a wide measurement range, the TE current sensors cover the full current range of 5 to 1000 A, with only 6 references.
A rapid RJ12 connection makes wiring easy and reliable and prevents wiring errors. This also allows automatic detection of the sensor type and size/transformation ratio.
Class 0.5 from 2% to 120% of rated current for the global measurement chain (associated with TE current sensors).
Class 1 from 2% to 120% of rated current for the global measurement chain (associated with TR current sensors).
New installation: a range of solid TE sensors adapted to the pitch of protective devices.
Existing installations: a range of split-core TR sensors for existing sites.
Existing space-constrained installations with high-intensity currents: a range of flexible TF current sensors (Rogowski).
