CITROEN SWITCHGEARS PVT. LTD is one of the LEADING AUTHORIZED DEALER & STOCKIST for SOCOMEC.

Our product gamut consists of SOCOMEC range of METERING like as Multi-circuit Metering.

Multi-circuit Metering

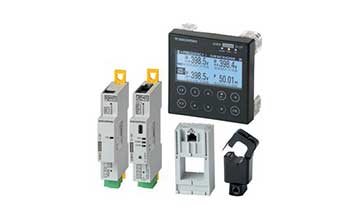

DIRIS Digiware

The DIRIS Digiware system is a hub of technological innovations that revolutionises the world of measurements, bringing a high degree of flexibility to installations and making connection and configuration easy. These innovations, together with unrivaled performance in terms of accuracy and functionality, make DIRIS Digiware the most effective solution for metering consumption, measuring and monitoring the quality of electrical energy in industrial and commercial applications.

Advantages

Multi-circuit

Can monitor several circuits via a single current measurement module thanks to independent current inputs.

Accuracy as per standard IEC 61557-12

Class 0.5 from 2% to 120% of rated current for the global measurement chain (associated with TE current sensors).

Class 0.2 for the meter alone.

Cost effective and flexible

Implementation in a quarter of the time vs existing technologies.

Installation of modules and sensors at the closest point to the load.

Compact design: suitable for new, existing or installations with space restrictions.

Plug & Play

RJ12 current sensor connection

RJ45 interconnection of I and U modules via Digiware bus.

Auto-configuration of parameters: Network and load type - addressing of devices connected to the bus.

View Description Enquiry

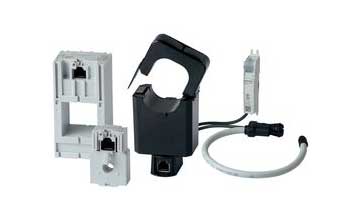

TE, TR and TF Current sensors

TE, TR and TF current sensor ranges can be connected to DIRIS Digiware and DIRIS B-30 via a rapid RJ12 connection. Various accessories are available to allow the installation of sensors in all panel configurations.

Thanks to a wide measurement range, the TE current sensors cover the full current range of 5 to 1000 A, with only 6 references.

Advantages

Plug & Play

A rapid RJ12 connection makes wiring easy and reliable and prevents wiring errors. This also allows automatic detection of the sensor type and size/transformation ratio.

Accuracy as per standard IEC 61557-12

Class 0.5 from 2% to 120% of rated current for the global measurement chain (associated with TE current sensors).

Class 1 from 2% to 120% of rated current for the global measurement chain (associated with TR current sensors).

Suitable for any installation

New installation: a range of solid TE sensors adapted to the pitch of protective devices.

Existing installations: a range of split-core TR sensors for existing sites.

Existing space-constrained installations with high-intensity currents: a range of flexible TF current sensors (Rogowski).

View Description Enquiry
