CITROEN SWITCHGEARS PVT. LTD is one of the LEADING AUTHORIZED DEALER & STOCKIST for SOCOMEC.

Our product gamut consists of SOCOMEC range of MANUAL TRANSFER SWITCHES like as FUSE CHANGEOVER SWITCH - COS.

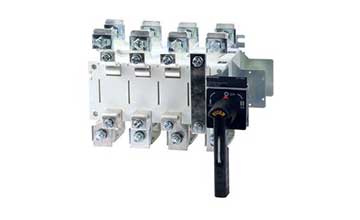

Fuse COS

Fuse changeover switch from 125 to 630 A

The SOCOMEC fuse COS is a manually operated 4 poles changeover with protective devices as HRC fuses mounted on the load side. The switch is provided with an isolating neutral and offers protection against overload and short-circuit in position I and II.

Strong Points
  • Safe and easy to use
  • Stable positions
  • Large connection capabilities for direct aluminium connection
  • Overload and short-circuit current protection up to 80kA

Advantages

Guarantees sufficient air distance clearance

This features results in less heating of fuses and terminals, there by enhancing the product life cycle.

Protection

This feature gives a protection against overcurrent & short circuit fault by means of HRC Fuse links.

Strong endurance & Resistance to heat

The product has been tested for stringent operating conditions, giving peace of mind for the device and your installation over long periods of industrial usage

Line load interchangeability

This feature gives a flexibility to user to connect the incoming or outgoing either of the side of the switch

Termination without need of Phase barriers

By design , sufficient air distances have been maintained , thereby removing the need of having add-on phase separation barriers.

High thermal and dynamic withstand

The product has been tested for high short-circuit withstand level, effectively managing the electrodynamics stresses encountered during faulty condition
