Our product gamut consists of SOCOMEC range of MANUAL TRANSFER SWITCHES like as ATyS t - ATyS g.

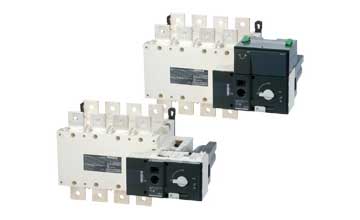

ATyS t - ATyS g

Automatic changeover switches from 125 to 3200 A

ATyS t and g are three-phase automatic transfer switches, 3 or 4 poles, with positive break indication. They incorporate all the functions offered by the ATyS d, as well as functions intended for mains/mains application (ATyS t) and mains/genset applications (ATyS g). In automatic mode they enable the monitoring of, and the on load changeover switching between, two power supply sources, in accordance with the parameters configured via two potentiometers and four DIP switches. They are intended for use in low voltage power supply systems where a brief interruption of the load supply is acceptable during transfer.


Rapid commissioning

ATyS t and g switches offer significant time saving during commissioning (process takes 2 to 3 minutes). Thanks to the design that allows commissioning through just two potentiometers (4 on the ATyS g) and four DIP switches, a screwdriver is all that is required to configure the parameters. For added simplicity, they also offer an autoconfiguration function which enables automatic adjustment of the rated voltage and frequency.

ATyS t: specifically designed for mains/mains applications

The ATyS t integrated controller has been designed to provide only the functions required for these applications (operation with or without priority, preferred source selection) together with the monitoring of the voltage and frequency of both sources, for threephase and single-phase networks.

ATyS g: specifically designed for mains/ genset applications

The ATyS g integrated controller has been designed to provide specific functions for these applications (genset startup, on-load or off-load tests) together with the monitoring of the voltage and frequency of both sources for three-phase and single-phase networks.
